5000gsm Geosynthetic Clay Liner Waterproof Blanket GCL

  • 5000gsm Geosynthetic Clay Liner Waterproof Blanket GCL
  • 5000gsm Geosynthetic Clay Liner Waterproof Blanket GCL
  • 5000gsm Geosynthetic Clay Liner Waterproof Blanket GCL

5000gsm Geosynthetic Clay Liner Waterproof Blanket GCL

    Payment Type: L/C,T/T
    Terms of Trade: FOB
    Min. Order: 3000 Square Meter
    Delivery Time: 6 Days
    Packaging: woven bag or as customer's
    Productivity: 5tons per day
    Brand: Tinhy
    Transportation: Ocean,Land
    Place of Origin: Shandong
    Supply Ability: 1800tons per year
    Certificate: ISO9001
    HS Code: 6815999000
    Port: Qingdao

Basic Info

Model No.: TH-004

Product Description

Geosynthetic Clay Liner Waterproof Blanket GCL 5000gsm

Sodium base bentonite Waterproofing Geosynthetic Clay Liner was made from two layers geotextile with natural sodium in the centre.Geosynthetic Clay Liner (GCL) is a new type of geosynthetics. Anti-seepage Geosynthetic Clay Liner is made from grading natural sodium bentonite particles and admixtures mixed uniformly. By special technology and equipment, bentonite is fixed between two layers of geotextile which can made bentonite waterproofing blanket. Geomembrane Geosynthetic Clay Liner not only has all the features of the geotextile material, but also has excellent waterproof performance (permeability).

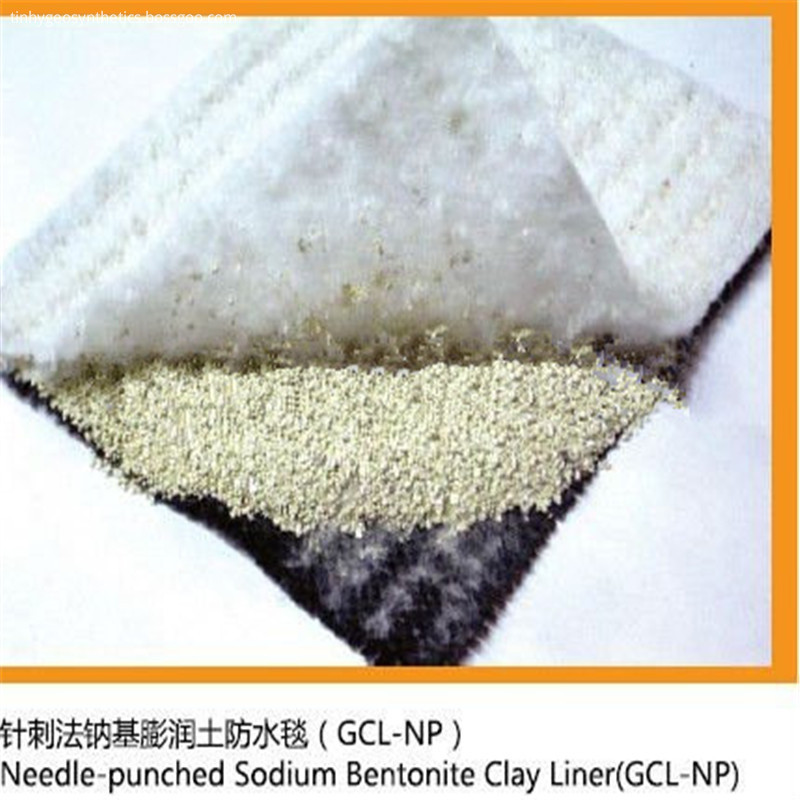

GCL sample

Geosynthetic Clay Liner Applications:

The water proof bentonite pad is mainly used in penetration-proof,airproof &separation in rubbish burying square,man-made lake,channel,pool,basement,subway,etc.

GCL for man-made lake (1)

Geosynthetic Clay Liner Feature
Compactness: sodium base bentonite under water pressure condition to form diaphragm with high density, thickness of about 3 mm, its permeability is & x 10 m/SEC 11 below, equivalent to 100 times the compactness of 30 cm thickness of clay, have very strong since the water retention performance.
Gcl Geosynthetic Clay Layer For LandscapeFeature Of GclPermanent waterproof performance: because sodium base bentonite is a natural inorganic material, even after a long time or the surrounding environment changes, also won't happen aging or corrosion phenomena, so the waterproof performance persistence.
Construction simple and short time limit: compared to other waterproofing materials, construction is relatively simple, don't need to be heated and paste.With bentonite powder and nails, washers, etc are connected and fixed.After construction does not need special inspection, if it is found that the waterproof defects and easy to maintenance.GCL is existing waterproof material in construction period of the shortest.
Integration: sodium base bentonite under water, the swelling capacity of 20~28 times, even if the concrete structure vibration and settlement, within the GCL bentonite can also repair the crack on the surface of the concrete within 2 mm.
Green: bentonite as natural inorganic material, non-toxic harmless to human body, no special effects to the environment, have good environmental performance.

bentonite geosynthetic clay liner

Specification:

GCL specification

1

Item

Specification

GCL-NP

GCL-OF

GCL-AH

2

size deviation%

length

-1%

-1%

-1%

width

-1%

-1%

-1%

3

Unit weight g/m2

≥4000

≥4000

≥4000

4

Run voiume swelling bentonite mixture of ml/g

≥24

≥24

≥24

5

Tensile strength N/10cm

longitudinal

≥600

≥700

≥600

transverse

≥500

≥600

≥600

6

The maximum load elongation %

Longitudinal

≥10

≥10

≥8

Transverse

≥8

≥8

≥8

Peel strength N/10cm

≥40

≥40

7

CBR mullen bursting KN

≥1.5

≥2.0

≥1.0


Geosynthetic Clay Liner Certificate:

Ohsas8001Iso14001Iso9001 1

Over the years, the company was awarded [China Famous Brand"[Shandong Top Brand" and [Famous Brand of Shandong Province". CRCC railways product certification, CQC environmental protection certification, the European CE certification, three management systems certification and AAA credit rating certificate has been acquired.

Contact:

Geosynthetics Producer Card

Service:

We are willing to supply good quality products and good service to satisfy customer's need!
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.

FAQ

1. Q: What's about your production capacity?

A: We produce 10 x 40ft container per day for geomembrane.


2. Q: How about your delivery time?

A: Within 7-14 days after deposit, we always deliver the goods according to customer's requirement.


3. Q: What's about the minimum order quantity?

A: The MOQ is 5000m2, customer can mix different sizes in one 20GP. We suggest at least 20GP,as by our exporting experience, 20GP container sea freight is more economic.


4. Q: How about quality guarantee of your geomembrane?

A:1) Material Purchase Control. Our Material are imported from Iran and Saudi Arabia. Those country specializing in better raw material.

2) Advanced production equipment, producing ASTM specification data.

4)We could provide you TRI or BTTG test report if you need.


5. Q: Do you have stock?

A: All geomembrane we send to customers are new geomembrane. We don't have any stock to ensure customers use best new geomembrane and new patterns.


6. Q: Terms of payment

A: 1). First time cooperation, we can accept 30% TT deposit, the balance should be paid against copy of B/L within 10 days.

2). By irrevocable LC at sight.


7. Q: What certificates do you have?

A: CE, ISO, SGS, TRI, BTTG, MSDS
